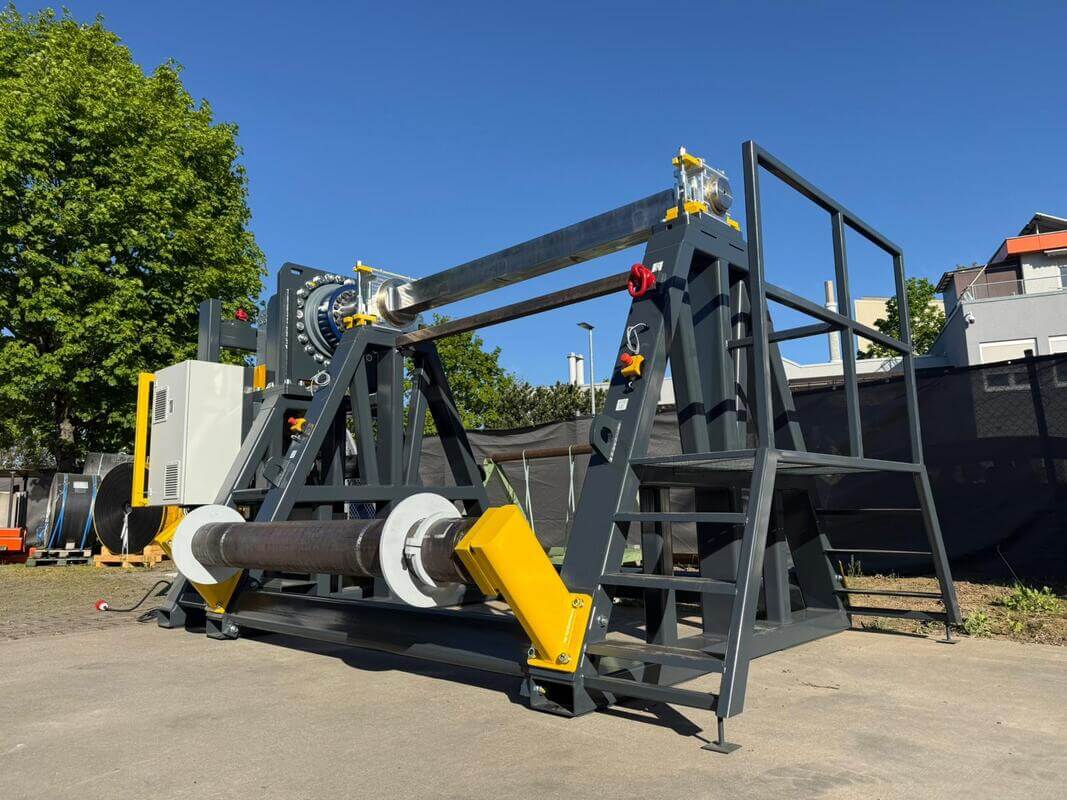

MK4 beltwinder superheavy
Benefits
- Modular A-frame welded construction
- Heavy-duty planetary gearboxes
- No transmission chain between the motor and the shaft
- Inlet roller / fixings can always be fitted on both sides
Specs

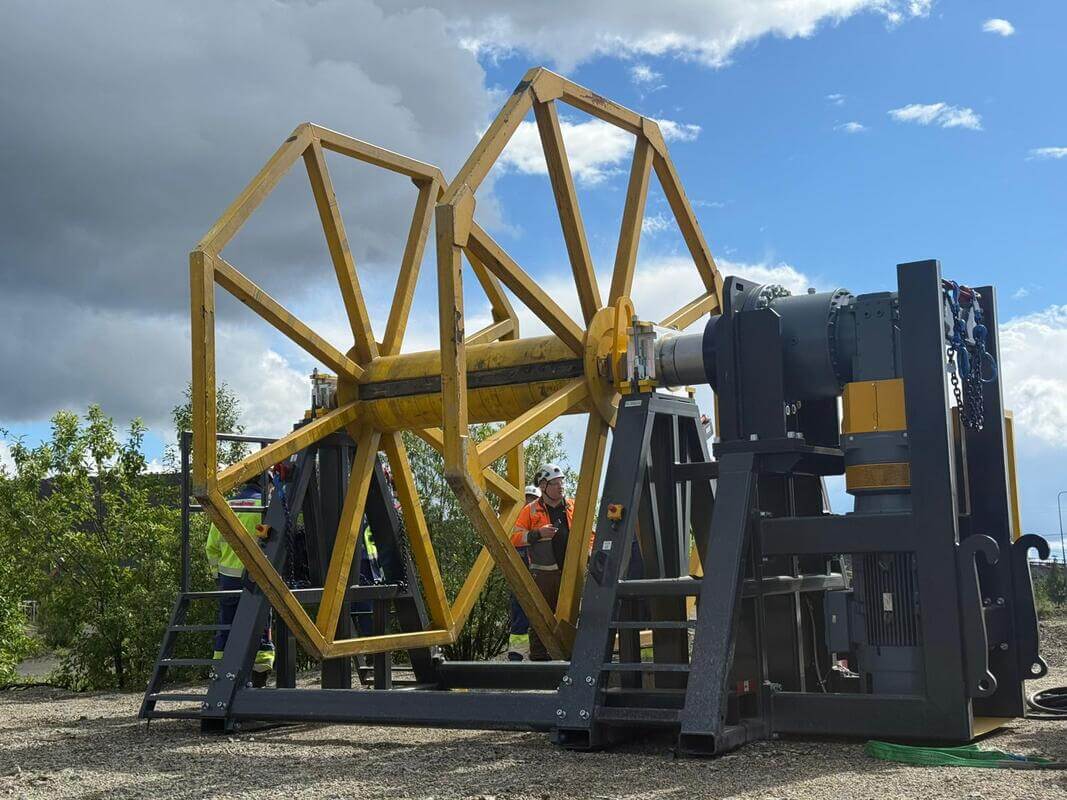

The MK4 winding stand simplifies the cutting-to-length and winding process for heavy-duty conveyor belts
Technical specifications & advantages:
- Variable winding speed (start/stop, CW/CCW, RPM, optional: feedback power)
- Up to 50 tonnes winding weight
- Up to 110 kW drive
- Up to 300 kN·m
- Solid drive shaft (150 × 150, 160 × 160, 210 × 210)
- Weight approx. 6.5 tonnes
- Belt widths: 800–3,200 mm
- CE
- Made in Germany
